| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | XZH TEST |
| Chứng nhận: | CE ISO |
| Số mô hình: | XHZs 506S |
Product Description
The cable stabbing device is divided into two parts: the shooting device of the cable stabbing device is a low-speed piston type special device designed for stabbing the cable, its structure is reasonable and light, the installation is very convenient, and can be installed at any Angle. The controller of the cable splinter adopts advanced electronic detection line, and the cable splinter can remotely launch an iron nail to the cable, resulting in cable short circuit. If the cable is live, it must be shot and discharged. If it is not live, it is a power cut cable.
Technical parameter
1. Shooter: 2 gun bodies;
2. Remote control distance: more than 10 meters, you can remote control through the wall;
3. Control line length: 5 meters;
4. Fixture diameter: φ30-150mm;
5. Working power supply: charging AC 220V/50Hz, the built-in battery can work continuously for more than 10 hours;

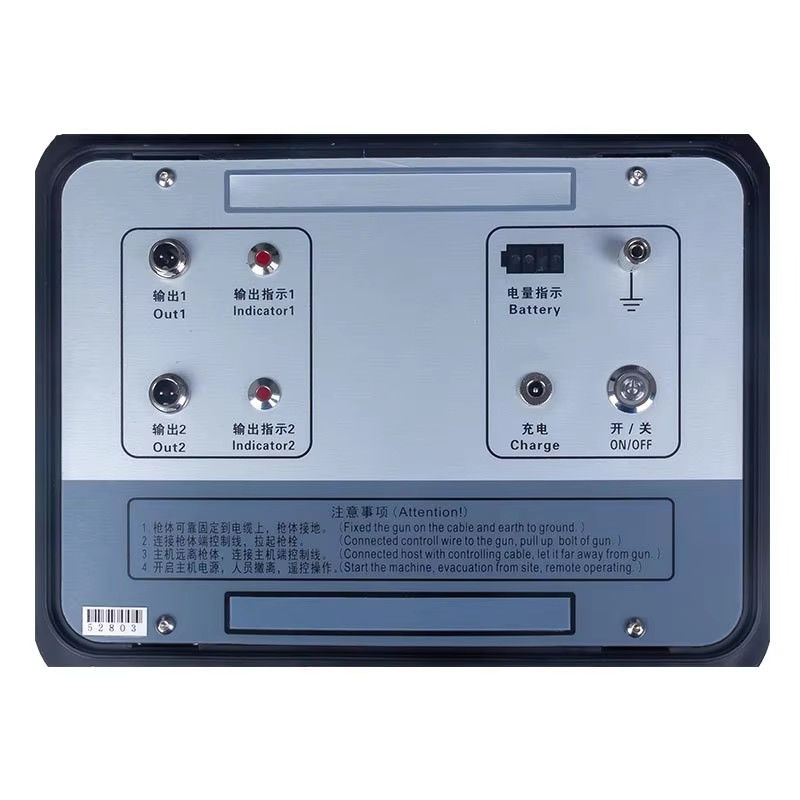

6. Controller: 270×230×120mm 2.5kg;
7. The whole set: 470×380×210mm 15.5kg (double gun 506YS).
Tie nail specification table:
| Diameter of cable(mm) | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
| Spec. of tie nail | PS27C8 | PS37C8 | PS47C8 | PS52C8 | ||||
Bullet power meter:
| Spec. | black | blue | yellow | red | Recommended | 35kV and below | Above 35kV |
| power | Min. | small | Mid. | Max. | with S1 yellow | With S1 red (6.8*11mm) |
Features
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of spiking and form a short circuit point; 2. It is controlled by wired + wireless remote control, and it can be remote controlled through the wall; 3. AC and DC dual use, built-in lithium battery pack and large-capacity energy storage device, long charging time; 4. Small size and light weight, very suitable for field use.
