| Nguồn gốc: | Tây An Sơn Tây |
| Hàng hiệu: | XZH TEST |
| Chứng nhận: | CE |
| Số mô hình: | XHGG501D |
XHGG501D is suitable for low-resistance, short-circuit, open-circuit and disconnection faults, as well as leakage high-resistance and flashover high-resistance faults of power cables, coaxial cables, street light cables, buried wires, etc. of various materials with different cross-sections and different media.
Technical Parameters
|
Sampling frequency |
100MHz |
|
Pulse width |
0.1uS/2uS |
|
Minimum resolution |
0.5m |
|
Test blind zone |
≤20m |
|
Ranging range |
≤30km |
|
Measurement error |
≤±(0.5%×L+1m), L is the cable length |
|
Power supply mode |
charging 220VAC±10%, 50Hz/60Hz; built-in 5200mAH lithium battery power supply; |
|
Working conditions |
-20～+60℃, relative humidity≤90%; |
Product Features
• Single-chip centralized control, touch operation mode, strong anti-interference ability
• It has functions such as distance measurement, speed measurement and resistance measurement
• Fully automatic continuous sampling, waveform capture is timely and accurate
• With low-voltage pulse sampling method, flashover sampling method

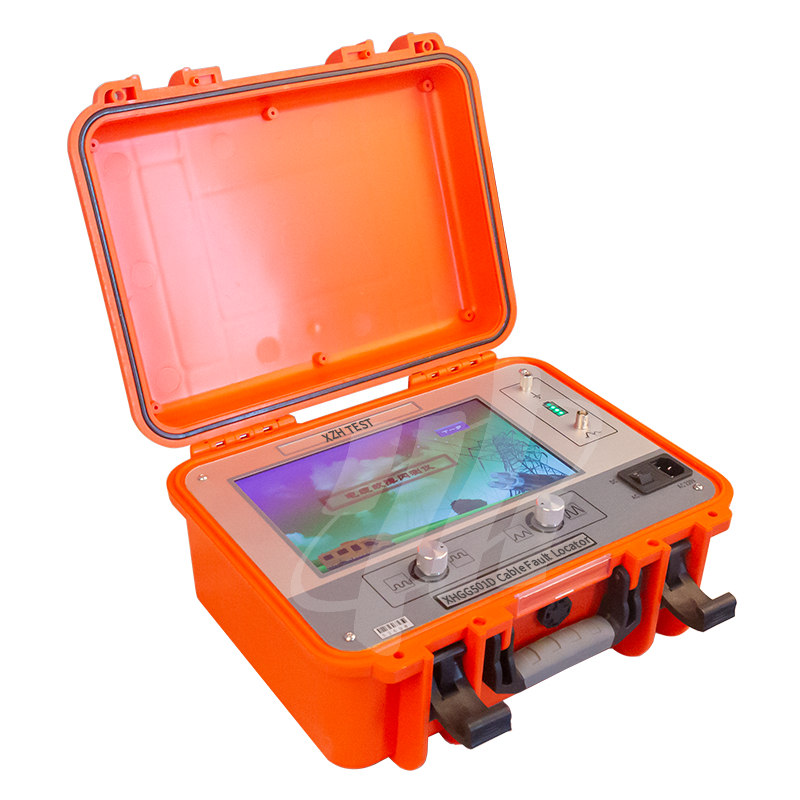

Hot sale underground cable fault locator/TDR cable fault tester
