| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | XZH Test |
| Chứng nhận: | CE/ISO |
| Số mô hình: | XHCC-6/35 |

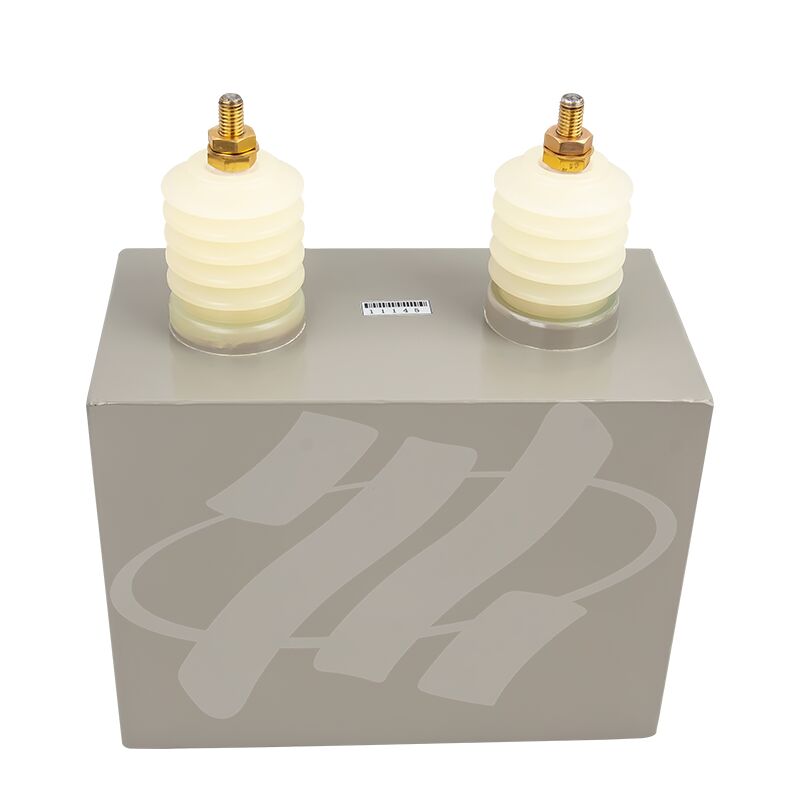

XHCC-6/35
Overview
Pulse energy storage capacitors utilize imported film and a non-inductive winding structure, offering excellent self-healing and explosion-proof properties. They feature a reliable structure, are leak-proof, pollution-free, moisture-proof, fire-resistant, and have a long lifespan, small size, and light weight.
Applications
Pulse energy storage capacitors store energy from a low-power source by charging the capacitor over a certain time interval. At the required moment, the stored energy is rapidly released in a very short time interval, generating a powerful surge current and high impulse power. They are mainly used in high-voltage impulse discharge testing, high-energy physics, oscillation circuits, geological exploration, and other fields.
Technical Parameters:
Ambient temperature: -20 to +50℃;
Altitude: ≤2000 meters (specifications for altitudes above 2000 meters will be provided separately);
Capacitance tolerance: ±5%;
Rated capacitance: 6uF
Rated voltage level: 35kV
Precautions and Common Faults
1. If there are unusual noises inside the capacitor during use, it is recommended to stop using it, as there is a risk of internal insulation damage.
2. When using the pulse energy storage capacitor, please read the instruction manual and the capacitor label to prevent overvoltage use.
3. Avoid impacting or bumping the pulse energy storage capacitor, as this can easily damage the internal film.
4. After the test is completed, the high-voltage terminal must be fully discharged.
5. During use, pay attention to the voltage rating of the connecting wires and the safety distance.
6. If the capacitor casing shows bulging or protrusions, it is recommended to stop using it, as there is a risk of internal material deterioration and reduced insulation.
