| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | XZH Test |
| Chứng nhận: | CE/ISO |
| Số mô hình: | XHZS506S |

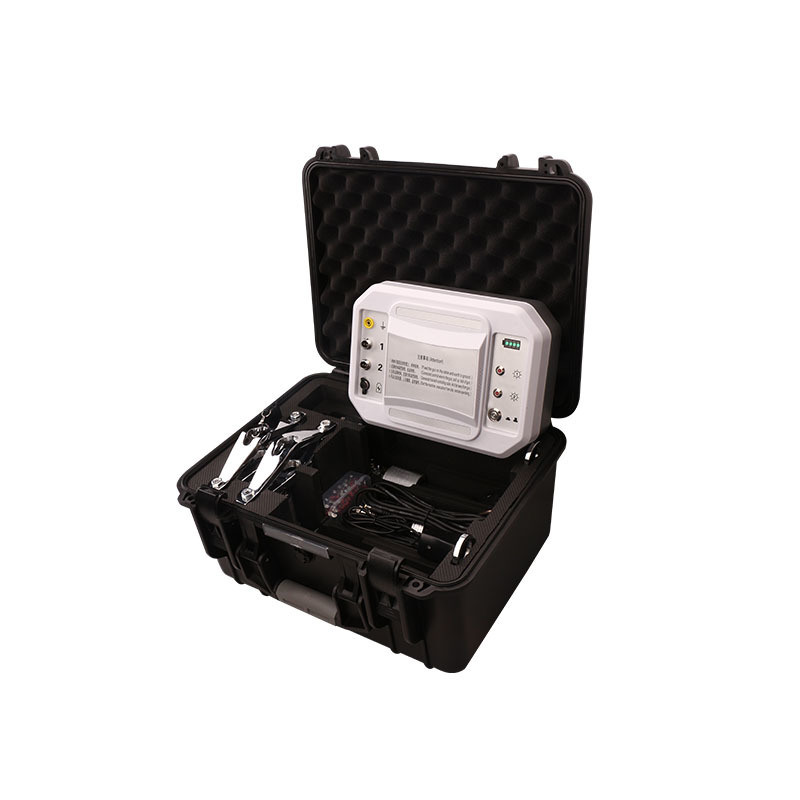

XHZS506S Cable Spiker
Every year in the power system, human life accidents occur due to the manual sawing of wrong live cables. This device can completely solve the problem. It employs a remote-controlled automatic piercing device to puncture and damage the relevant cables on the spot. If the cable is electrified, it will explode upon puncture; otherwise, it will not be electrified.
In the process of power cable construction, especially when migrating and repairing laid cables, it is often necessary to saw off the relevant cables. To ensure the operator's personal safety, the first step is to identify the cables on site and determine whether they are live. Only after confirmation can the cables be sawed off.
There are typically two methods to confirm the identity of the relevant cables on site. One is through the original design and construction records, which can help locate the cables. The other, and more reliable, method is to use mechanical puncture to short-circuit the cable to the ground or to another phase. This is usually done through remote-controlled automatic puncturing.
After the cable is identified, before sawing, it is a special instrument for further destructive judgment of the cable
after the cable is identified. 100% confirm whether the cable is live, absolutely guarantee the personal safety of the staff.
1. When the angle between the two guns is not 120°, at least one gun body can achieve the purpose of piercing and form a short circuit point;
2. It is controlled by wired + wireless remote control, and it can be remote controlled through the wall;
3. AC and DC dual-use, built-in lithium battery pack and large-capacity energy storage device, long charging time;
4. Small size and light weight, very suitable for field use.
| Shooter | 2 gun bodies |
| Remote control distance | More than 10 meters, you can remote control through the wall |
| Control line length | 5 meters |
| Fixture diameter | φ30-150mm |
| Working power | Charging AC 220V/50Hz, the built-in battery works continuously for more than 10 hours |
| Controller | 270×230×120mm 2.5kg |
| Whole set | 470×380×210mm 15.5kg (dual gun 506S) |
