China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator

Name: China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator
Brand: Xi'an Xu&Hui Electromechanical Technology Co., Ltd.
SKU: XHHG521C
Price: 1,050.00 USD
Availability: InStock

Chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	XZH Test
Chứng nhận:	CE/ISO
Số mô hình:	XHHG521C

Thông tin chi tiết

Nguồn gốc:

Trung Quốc

Hàng hiệu:

XZH Test

Chứng nhận:

CE/ISO

Số mô hình:

XHHG521C

Làm nổi bật:

High Light

Làm nổi bật:

high voltage cable fault locator

electrical sheath prelocator

bridge cable fault detector

Trading Information

Số lượng đặt hàng tối thiểu:

1Unit

chi tiết đóng gói:

Hộp gỗ

Thời gian giao hàng:

5-8 ngày làm việc

Điều khoản thanh toán:

T/t

Khả năng cung cấp:

2000 đơn vị/năm

Mô tả sản phẩm

high-voltage bridge cable fault locator

Model NO.

XHHG521C

Usage

Network Cable Tester, HDMI Cable Tester, Audio Cable Tester, Coaxial Cable Tester

Power

Electricity

Certification

Customized

Color

Black

Transport Package

Exported Wooden Case

Trademark

XZH TEST

Origin

China

HS Code

9031809090

Production Capacity

2000PCS/Year

Product Description

The high-voltage bridge cable fault locator, based on the MURRAY bridge principle, is used for locating breakdown and low-insulation-resistance defect points in wires and cables, as well as defects in cable factories. It features a high-voltage constant current source, sensitive amplifier, and galvanometer, with a special double-core high-voltage cable and four-terminal resistance measurement method. The unit is housed in a portable aluminum alloy case, with an insulated rod for safe operation. Unlike the wave reflection method, the bridge balance method offers no blind area and is ideal for short cable and end-point defect detection.

The output voltage is adjustable;
The shock frequency is adjustable;
With overcurrent protection;
There is no blind spot in the test range;
Signal frequency adjustment;
Zero protection.
High-voltage bridges are particularly suitable for
1. The high-resistance breakdown point of the cable after laying, especially the linear high-resistance breakdown point that is difficult to burn low-resistance, such as the linear high-resistance breakdown of the cable intermediate joint.
2. Flashover type breakdown point. After the breakdown, the constant current source can maintain the arc, a stable current flows through the bridge, and the bridge has sufficient sensitivity.
3. The defect points that have not yet broken down but have low resistance, such as the insulation defect points that have low resistance value of the cable but do not break down under the operating voltage are found by using a megohmmeter.

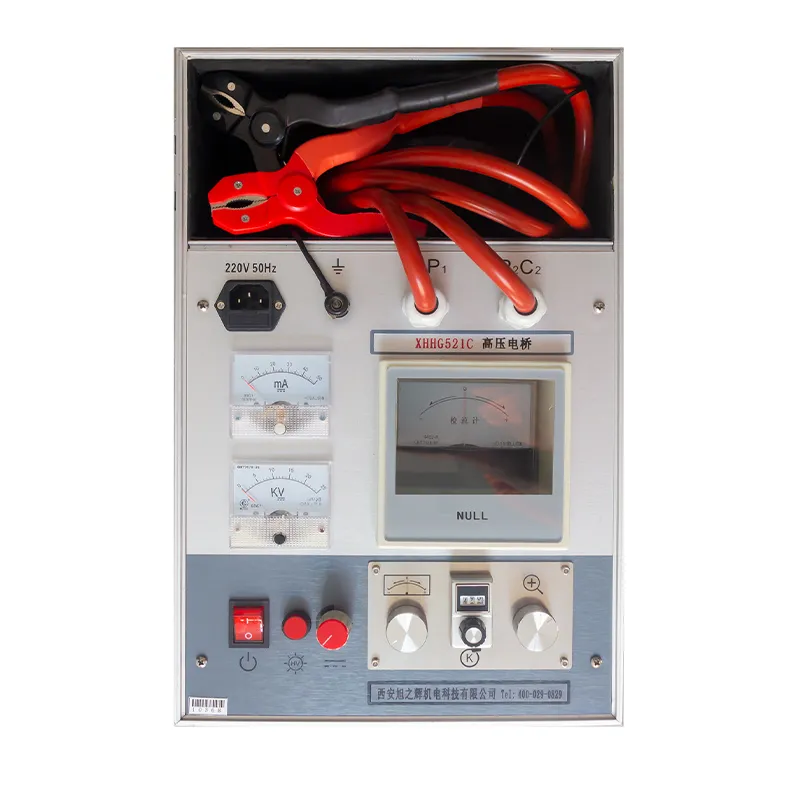

China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator 0

China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator 0

Due to the above characteristics, high-voltage high-voltage bridges are especially suitable for the following users:
Teams engaged in professional positioning: such as cable repair and trial classes for large and medium-sized power supply bureaus and large-scale electricity enterprises. Most of the cable breakdown points can be quickly found with a high-voltage bridge to find the approximate breakdown location. It can be used in conjunction with the wave reflection method and the fixed point meter to learn from each other's strengths and make the positioning faster and more reliable.
1. Small users: such as small power supply bureaus and medium-sized electricity enterprises. There are not many cables, the general direction is clear, the instrument is not located, the price is high, and the quality and experience of the user are required to be high, so it is not the best choice. It is a better way to choose this device, which is easy to operate and can meet daily needs.
2. Cable production plant: In the factory, it can be used to locate the breakdown point of various cables, and a digital capacitance meter can be selected to find out the disconnection point. The device is light in weight and easy to carry to the field for positioning services for cable users.

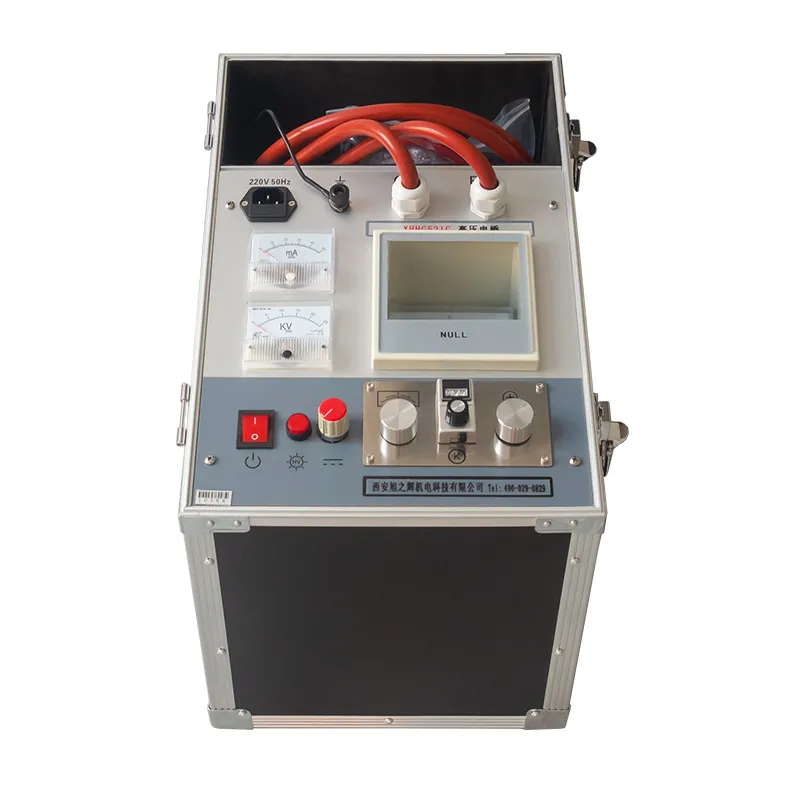

China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator 1

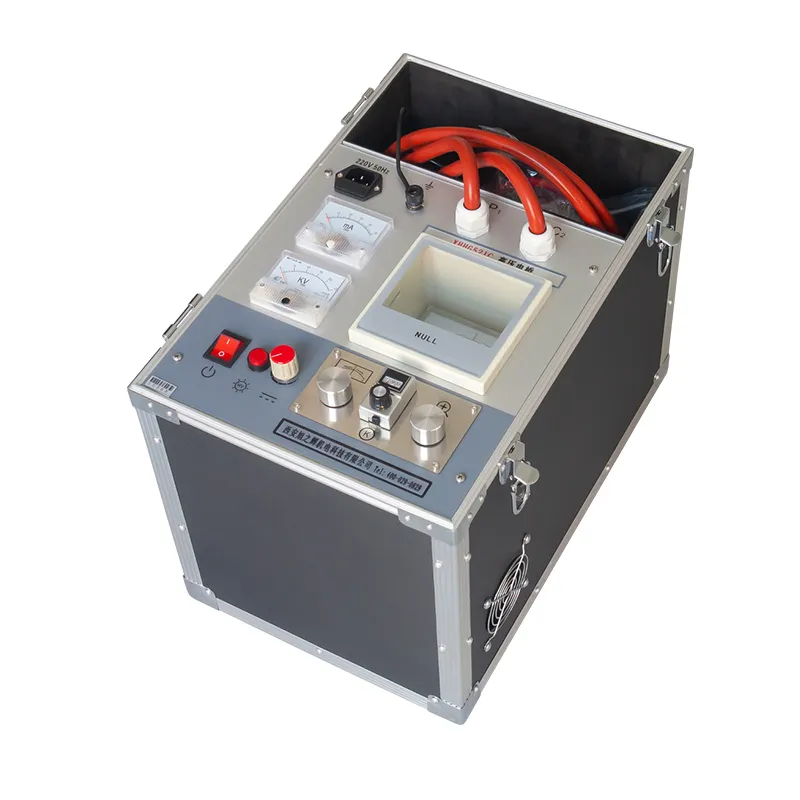

China Factory Supplier High Voltage Bridge Cable Fault Locator Power Electrical Outer Sheath Prelocator 2

No load voltage	≤15KV
Short circuit current	≤100mA
Positioning accuracy	±(0.1%·L±1)M
Weight	16 kg
Power supply	AC 220 and 9V battery
